3300 ICP Hardware User Guide

180 Release 3.3

Note that there are two T1/E1 links per NSU.

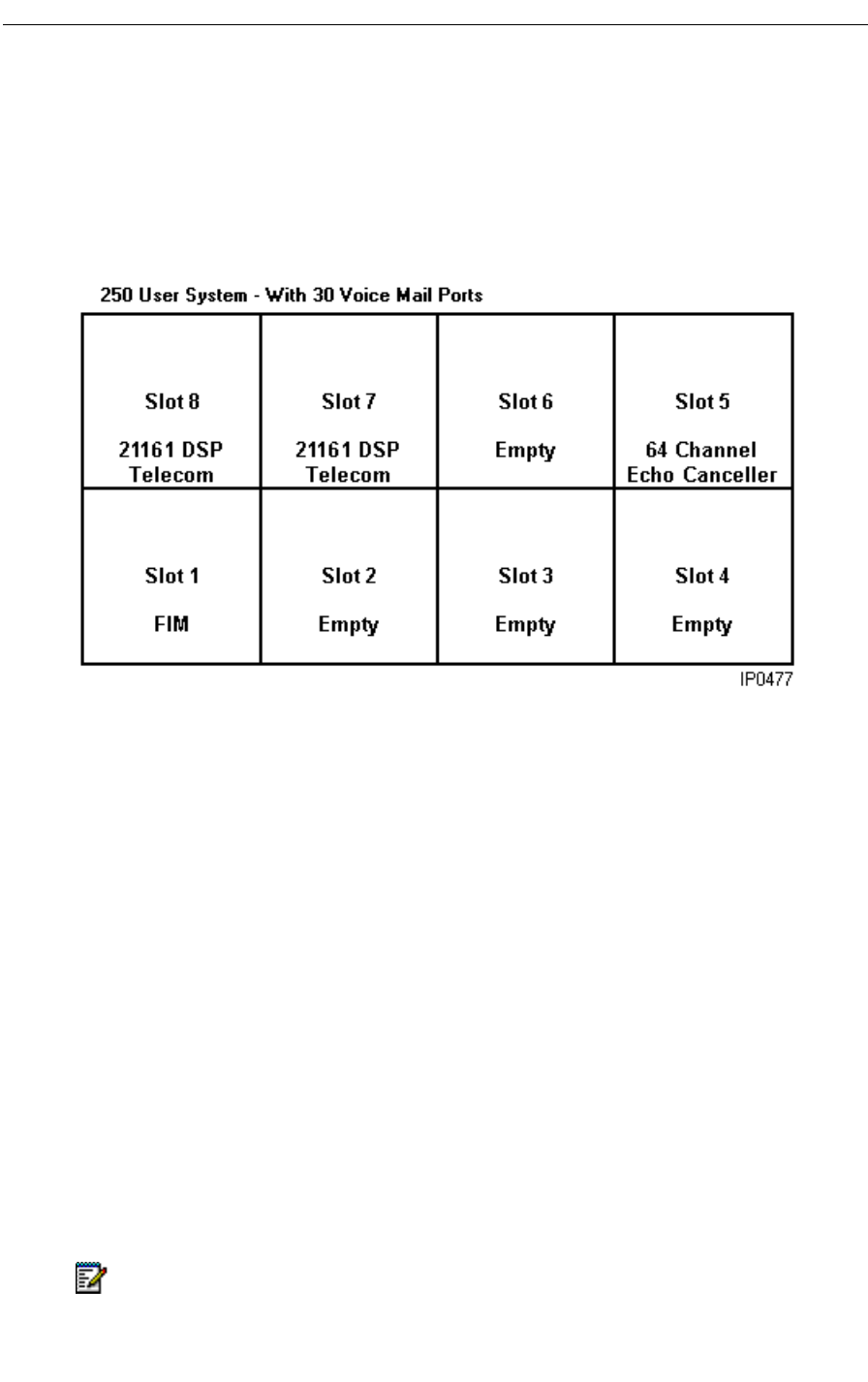

To add voice mail ports to a 250 user system (Release 3.0/3.1 chassis):

1. Remove the cover.

2. Install the additional DSP Module (Slot 7).

3. Replace the cover.

250 User System - Add 32 Compression Channels

250 user system (Release 3.0/3.1 chassis) upgrade to add support for 32 compression

channels.

This system uses the following existing modules:

• One 300 MHz RTC

• One 300 MHz E2T

• One 64 Channel Echo Canceller

• One Dual FIM

• One DSP Module (21061/21161) for telecom support

Add the following module:

• One DSP Module (21161) for 32 compression channels

Note: You must purchase compression licenses. Refer to E2T Compression for

guidelines on meeting your compression requirements.
